Clivet presented New ELFOEnergy Sheen EVO

Date: 21 December 2020
Слайд-41499

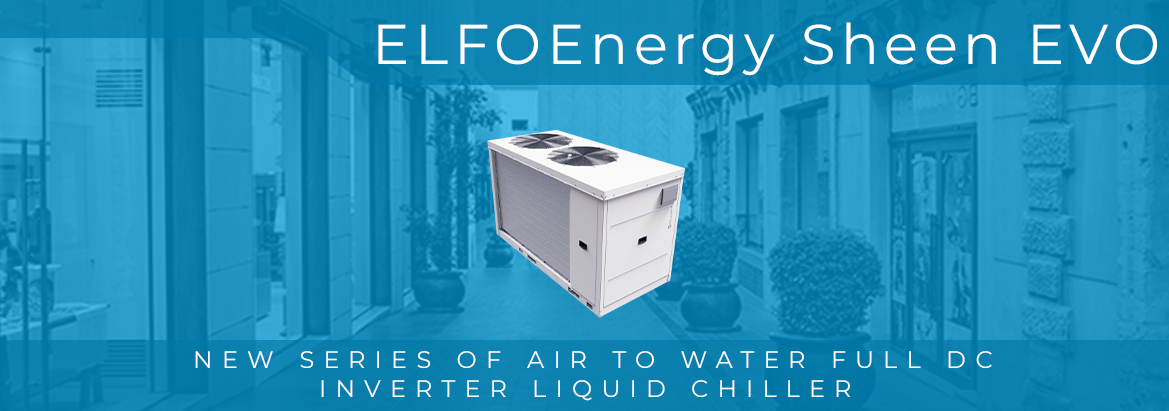

Clivet presented New ELFOEnergy Sheen EVO


ELFOEnergy Sheen EVO (WSAT-YSi) is the new series of air to water full DC inverter packaged  liquid chiller for external installation, with R32 refrigerant, available in 6 sizes from 43 kW to 98 kW.

New refrigerant R32

New ELFOEnergy Sheen EVO is the sustainable solution for the conditioning and domestic hot water production thanks to the ecological R32 refrigerant, with a GWP (Global Warming Potential) of -70% compared to R410A refrigerant.

Clivet is among the firsts on the markets with a R32 mono-block solution, being at the cutting edge of technologies and at the forefront on environmental issues.

Innovative technology and top performances

Thanks to the full DC inverter technology applied to compressors and fans and the microchannel coil, ELFOEnergy Sheen EVO (WSAT-YSi) liquid chillers present top performances, in both terms of cooling seasonal efficiency and full load efficiency. The series WSAT-YES reaches SEER values up to 5,37.

ELFOEnergy Sheen EVO features also wide operating ranges from -20°C up to +48°C of outdoor air temperature, with leaving water temperature down to -8°C.

It is therefore the perfect solution for both comfort and process applications.

With the aim to satisfy all the applications and possibility of installations, ELFOEnergy Sheen EVO also offers the functions already available on the heat pump version (WSAN-YSi) such as: the double adjustable set-point, the possibility to set the climate correlation curves in cooling operation and the modularity, the possibility to connect up to 16 units in a local network (combination also with different capacity units).

Application versatility

ELFOEnergy Sheen EVO is already available in standard configuration or with following components, integrated on board to guarantee maximum reliability and easy installation:
  • hydronic assembly with 1 inverter pump;
  • hydronic assembly with 1 on/off pump;
  • system storage tank of 160 (size 16.2-24.2) or 275 litres (size 32.2-40.2).
