09 March 2021

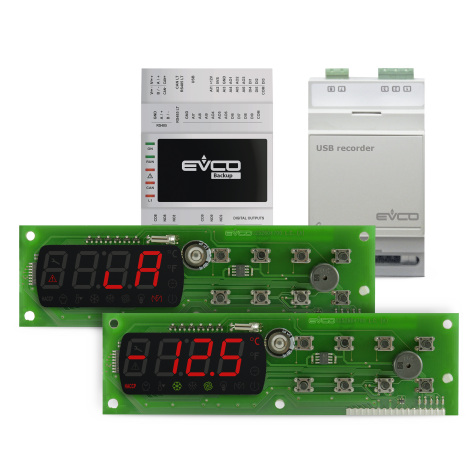

EVCO presented control solution for laboratory refrigerated units EVX 200 Lab
EVX 200 Lab is a control solution with measuring range -40°C to 110°C, suitable to laboratory refrigerated units which require emergency strategies in the event of a power failure.
The solution includes a controller (EVX204N7) and a backup module (EVPS9B) with battery charging functions. In the event of a power failure, the latter provides emergency power to the alarm module (EVX012N2FXB) with auxiliary probe management and to the data logger module (EVUSBREC03), which are interconnected in a serial RS-485 communication, thus ensuring that temperature and event data are always recorded for convenient exportation via a common USB flash drive.
The controller and the alarm module come in an open-board format with LED display and 6 keys which can be customized on the polyester overlay, used as a complement of the flush-fit installation on the unit front. The backup module and the data logger come in a DIN format and they are designed to fit in a control panel.
The solution includes a controller (EVX204N7) and a backup module (EVPS9B) with battery charging functions. In the event of a power failure, the latter provides emergency power to the alarm module (EVX012N2FXB) with auxiliary probe management and to the data logger module (EVUSBREC03), which are interconnected in a serial RS-485 communication, thus ensuring that temperature and event data are always recorded for convenient exportation via a common USB flash drive.
The controller and the alarm module come in an open-board format with LED display and 6 keys which can be customized on the polyester overlay, used as a complement of the flush-fit installation on the unit front. The backup module and the data logger come in a DIN format and they are designed to fit in a control panel.
