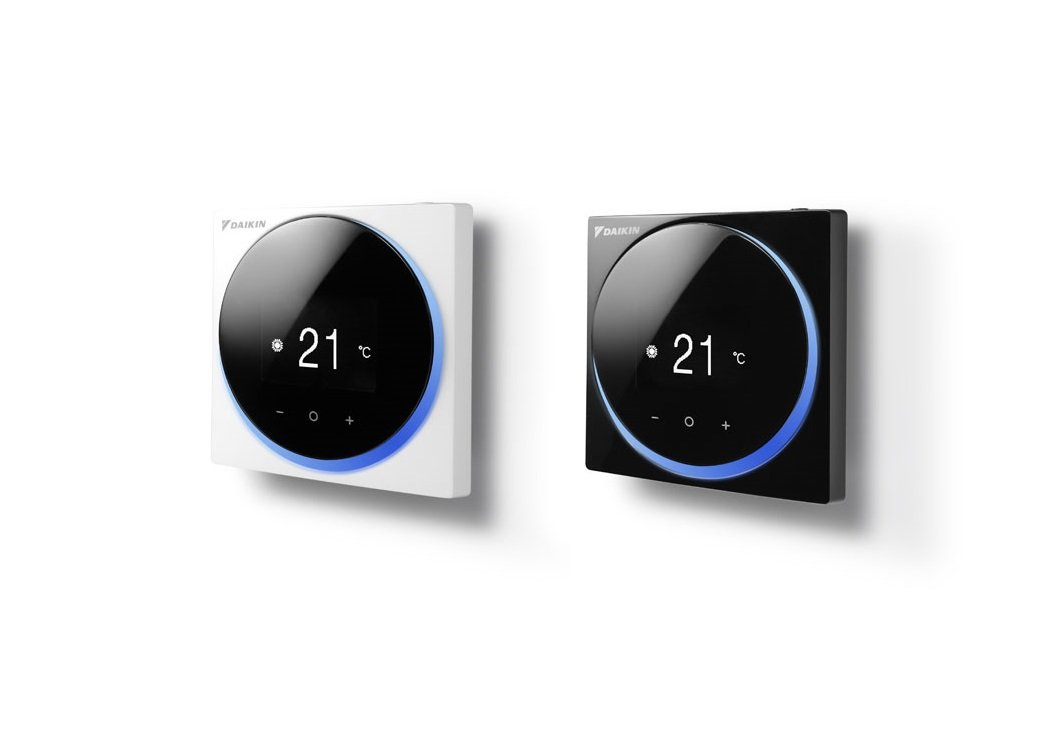

Daikin Australia is proud to announce the launch of the new Stylish Controller (BRC1H63W – white finish & BRC1H63K – black finish) with Zigbee 3.0 protocol to facilitate connection to a range of Daikin wireless sensors. This latest model also comes with enhanced functionality, including Off Timer, Weekly Schedule Timer and improved user operation such as easy access to Bluetooth pairing from the home screen with the dedicated Daikin App.
Compact design with advanced functionality
Measuring 85mm high x 85mm wide x 25mm deep, the controller has a compact simple display allowing users to easily control their comfort using the intuitive touch button control which provides direct access to essential functions such as on/off, fan speed, operation mode, airflow direction and now also includes an Off Timer that can be set in 1-hour increments and up to 96-hours.
Advanced functions can be achieved by connecting to the Daikin App using the controller’s built-in Bluetooth Low Energy (BLE) communication. Some of these user functions include Setback, Setpoint Range Limit and the newly introduced Weekly Schedule Timer enabling users to define 5 actions per day across 3 distinct schedules. For the installer, the app’s intuitive visual interface expedites the configuring of system field settings. Additionally, the controller can also be preconfigured in advance using the app to reduce on-site commissioning time.
Zigbee 3.0 wireless communication

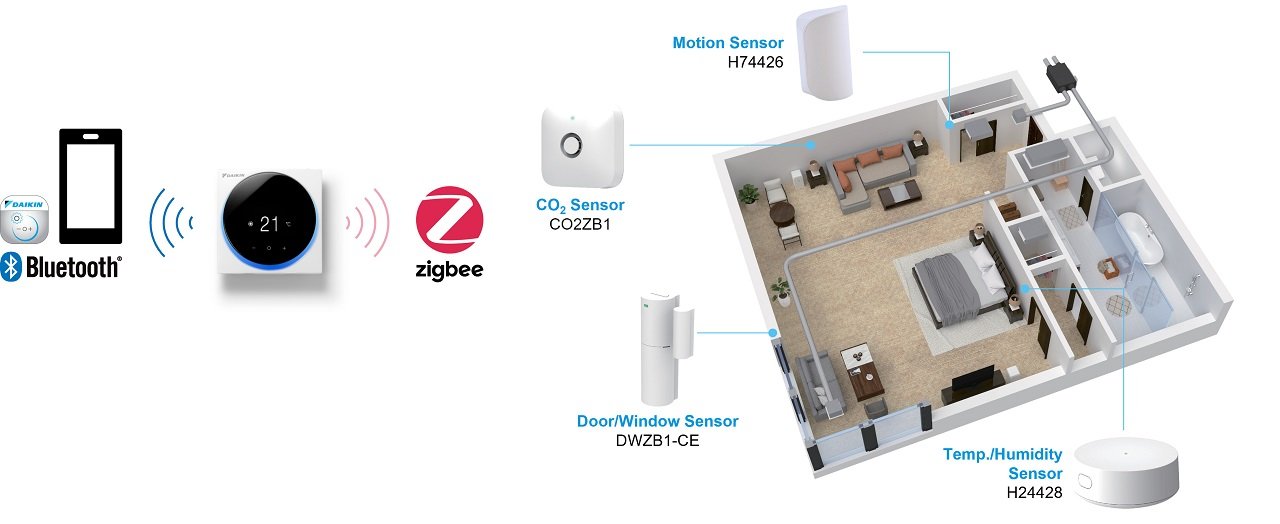

The Stylish Controller now comes with Zigbee 3.0 compatibility to enable connection with an assortment of wireless sensors. Four sensor types are available: CO2 sensor (CO2ZB1); temperature & humidity sensor (H24428); motion sensor (H74426); and door/window sensor (DWZB1-CE). These sensors allow for interlocked operation of Daikin SkyAir & VRV indoor units, Heat Reclaim Ventilators or Outdoor Air Processing Units with the sensors via the controller. Furthermore, the sensor’s derived metrics such as temperature, humidity and CO2 concentration are available for display on the controller.
