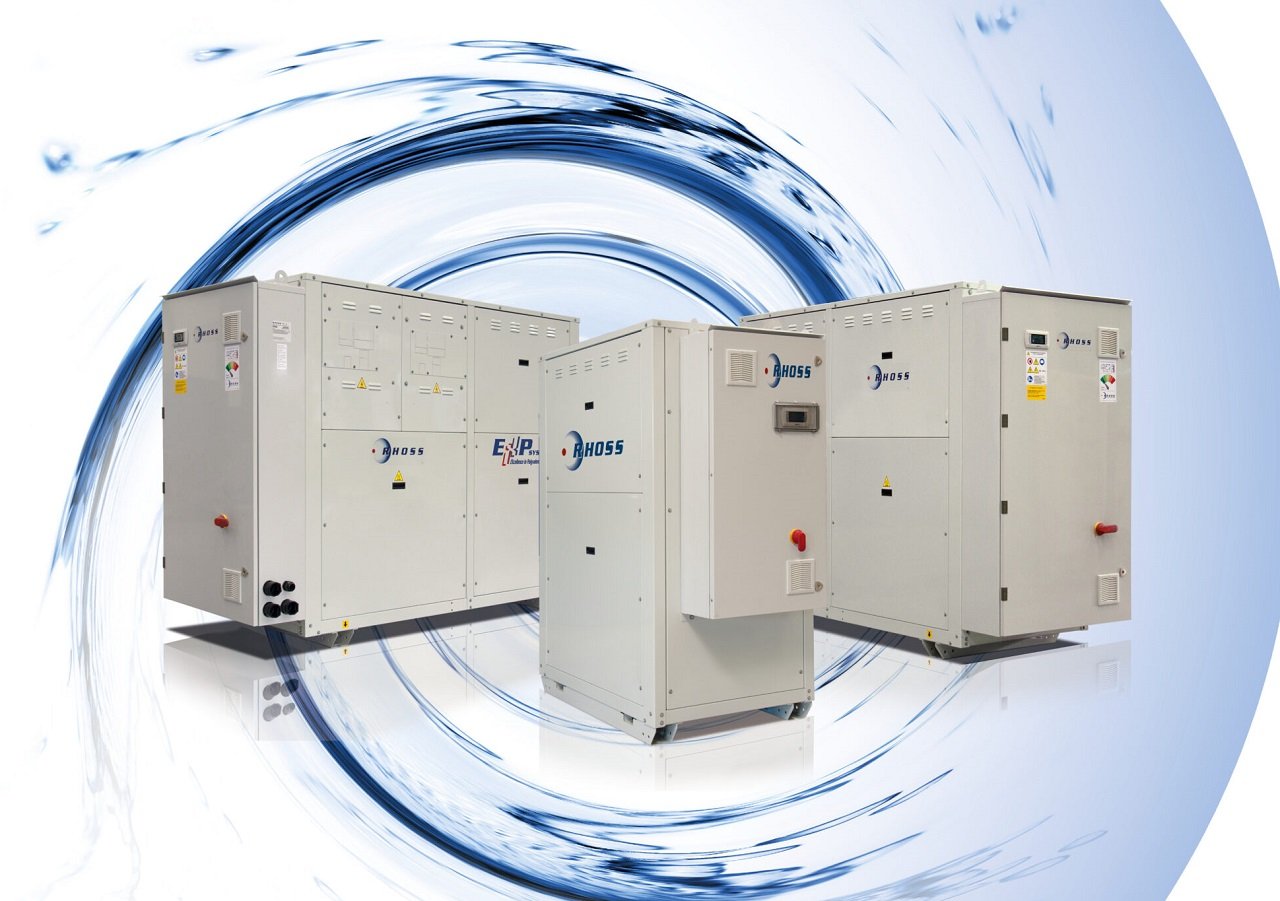

Energy efficiency and sustainability: New WINFLOW ECO and EASYFLOW ECO/ ECOA1 HT ranges complete the Rhoss offer of water source units, scroll compressors and low GWP refrigerants.
WINFLOW ECO
The new ranges, available as chillers and heat pumps, EXP multi-purpose units and condenserless units are available in 7 sizes (for each product type) and cover cooling capacities from approx. 185 to 395 kW, available in the high efficiency version.
The main features of the new models are:
- Optimized design with environmentally friendly gas R454B low GWP (466)
- Double-circuit, four fixed-speed scroll compressors configuration with one optimized and compact structure (depth < 870 mm).
- High energy efficiency for all versions of the range, with:
-
- EER up to 4,77 – COP up to 4,27 – TER up to 7,5
- SEER up to 6,60 – SCOP up to 6,93
- Extended operating limits, with:
- hot water production up to 57°C for R454B units;
- cold water production from -8°C (BT option, available for chillers, heat pumps, EXP and condenserless units) up to 20°C;
- adaptability in applications with well water, ground water, geothermal probes, dry coolers, cooling towers or in combination with a remote condenser (for condenserless units).
- Units designed with Plug&Play logic, with a wide range of pumping groups (up to 4 maximum)
- VPF_R (Variable Primary Flow by Rhoss) management.
- SIR – Rhoss Integrated Sequencer
- Various options and accessories
EASYFLOW ECO/ECOA1 HT
Heat pumps with water source and hydraulic-side reversibility for the production of high temperature water (up to 68°), scroll compressors and low GWP refrigerant R1234ze-R515B, are also now part of the Rhoss offer.
The new ranges are available in 9 sizes, and cover heating capacities from approximately 70 to 220 kW, available in the T – High efficiency version.
The main features of the new models are:
- Optimized design with environmentally friendly gas R1234ze low GWP (7) and R515B (GWP 293 and A1 class).
- Single-circuit, 1/2 fixed-speed scroll compressors configuration with two optimized and compact structures (depth < 870 mm).
- Units optimized for high temperature water production, with extended operating limits:
- hot water production up to 68°C;
- cold water production from -4°C (BT option) up to 20°C;
- High energy efficiency, with:
-
- COP up to 4,28
- SCOP up to 6,85
- Units designed with Plug&Play logic, with a wide range of pumping groups
- SIR – Rhoss Integrated Sequencer
- Various options and accessories
