The HVACR industry is undergoing a transformative shift as environmental regulations, such as the Montreal Protocol and Kigali Amendment, drive the phase-down of high-GWP refrigerants like HFCs in favor of more sustainable alternatives. This report explores the critical role refrigerants play in cooling systems and examines the transition to low-GWP solutions such as HFOs, CO₂, ammonia, and hydrocarbons. With a focus on regulatory impacts, safety considerations, and technological innovations, the report provides an in-depth look at the evolving refrigerant landscape across sectors, from commercial refrigeration to automotive air conditioning, as the industry moves toward more eco-friendly and efficient systems.


Contents:

  1. Introduction
    • Overview of Refrigerants in the HVACR Industry
    • Importance of Refrigerant Choice in Modern Systems
    • Regulatory Environment and Environmental Impact
  2. Types of Refrigerants
    • CFCs (Chlorofluorocarbons)
    • HCFCs (Hydrochlorofluorocarbons)
    • HFCs (Hydrofluorocarbons)
    • HFOs (Hydrofluoroolefins)
    • Natural Refrigerants (Ammonia, CO2, Hydrocarbons)
  3. Refrigerant Properties
    • Thermodynamic Characteristics
    • Safety Classifications (Toxicity, Flammability)
    • Environmental Impact (ODP, GWP)
    • Energy Efficiency
  4. Refrigerant Regulations and Standards
    • Global and Regional Environmental Regulations (Montreal Protocol, Kigali Amendment)
    • Safety Standards (ISO, EN, ASHRAE)
    • Future Trends in Regulatory Changes
  5. Refrigerant Applications in Various Sectors
    • Commercial Refrigeration
    • Industrial Refrigeration
    • Air Conditioning (Residential, Commercial, Industrial)
    • Heat Pumps
  6. Refrigerant Selection Criteria
    • Environmental Considerations (GWP, ODP)
    • System Design Compatibility
    • Energy Efficiency and Performance
    • Cost and Availability
  7. Refrigerant Handling and Safety
    • Safe Storage and Transportation
    • Leak Detection and Mitigation
    • Recovery, Recycling, and Disposal of Refrigerants
    • Technician Training and Certification
  8. Future of Refrigerants
    • Emerging Technologies in Refrigeration
    • Trends in Low-GWP Refrigerants
    • Alternatives to Conventional Refrigerants
    • Innovations in Refrigeration Systems Design
  9. Conclusion
    • Key Takeaways on Refrigerant Choices and Future Outlook
    • Challenges and Opportunities in the Refrigerant Sector





1. Introduction

Overview of Refrigerants in the HVACR Industry

Refrigerants are the lifeblood of heating, ventilation, air conditioning, and refrigeration (HVACR) systems, playing a pivotal role in the transfer of heat. These chemical compounds facilitate the cooling or heating process by cycling between liquid and gaseous states, absorbing and releasing heat in the process. The selection of the right refrigerant is critical to system performance, energy efficiency, and environmental impact. The evolution of refrigerants over the past century has been driven by technological advancements, regulatory pressures, and a growing awareness of the environmental consequences associated with refrigerant emissions.

In the early 20th century, natural refrigerants like ammonia (R-717) and carbon dioxide (R-744) were widely used in industrial applications due to their effectiveness. However, the search for safer, more stable alternatives led to the development of synthetic refrigerants like chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs). These chemicals revolutionized the HVACR industry due to their non-flammability and stability but were later discovered to contribute significantly to ozone depletion and global warming.

This realization prompted a global shift towards more environmentally friendly refrigerants, with a focus on reducing ozone depletion potential (ODP) and global warming potential (GWP). Today, the industry is transitioning towards refrigerants with lower environmental impact, such as hydrofluorocarbons (HFCs), hydrofluoroolefins (HFOs), and natural refrigerants, all while balancing performance, safety, and regulatory compliance.


Importance of Refrigerant Choice in Modern Systems

The selection of refrigerants impacts several critical aspects of HVACR systems, including energy efficiency, environmental sustainability, operational safety, and overall system longevity. Energy-efficient refrigerants not only reduce the operational cost but also contribute to lower greenhouse gas emissions, aligning with global goals to mitigate climate change. As a result, HVACR system designers and engineers must carefully consider the thermodynamic properties of refrigerants, their environmental footprint, and safety classifications when designing or retrofitting systems.

Additionally, many governments have imposed stringent regulations that restrict the use of high-GWP and ODP refrigerants. As regulatory standards evolve, businesses and manufacturers face increasing pressure to adopt refrigerants that comply with these rules while maintaining high performance and minimizing costs.


Regulatory Environment and Environmental Impact

The regulatory landscape surrounding refrigerants is shaped by international agreements such as the Montreal Protocol and its Kigali Amendment, which set global standards for phasing out ozone-depleting substances (ODS) and reducing the GWP of refrigerants. The Montreal Protocol, established in 1987, was instrumental in controlling and eventually eliminating the use of CFCs and HCFCs, which were found to be responsible for the depletion of the Earth's ozone layer. The Kigali Amendment, adopted in 2016, expanded the Protocol's mandate by calling for the gradual reduction in the production and consumption of HFCs—refrigerants that, while not harmful to the ozone layer, have significant global warming potential.

These international agreements have driven major changes in refrigerant use across the world, leading to the development of alternative low-GWP refrigerants and prompting innovation in refrigeration and air conditioning technologies. In addition to global regulations, regional authorities like the European Union’s F-Gas Regulation and the U.S. Environmental Protection Agency's Section 608 have further accelerated the shift towards more sustainable refrigerants.

The environmental impact of refrigerants extends beyond their immediate effect on ozone depletion and climate change. Improper handling, leaks, and system inefficiencies can lead to the release of refrigerants into the atmosphere, exacerbating their harmful effects. Consequently, modern systems are designed with leak detection, recovery, and recycling mechanisms to minimize refrigerant losses and enhance environmental protection.



2. Types of Refrigerants

Refrigerants have evolved significantly over the past century as technology, safety, and environmental considerations have progressed. The following section provides an in-depth exploration of the major types of refrigerants used in the HVACR industry, highlighting their characteristics, environmental impact, and suitability for different applications.

2.1 Chlorofluorocarbons (CFCs)

Chlorofluorocarbons (CFCs) were among the earliest synthetic refrigerants developed in the 1930s. Due to their stability, non-flammability, and low toxicity, CFCs were widely adopted in refrigeration and air conditioning systems for several decades. Common CFC refrigerants, such as R-12 and R-11, were once the industry standard in both residential and commercial HVACR applications.

However, CFCs were later found to have a devastating impact on the ozone layer, leading to their classification as ozone-depleting substances (ODS) with high Ozone Depletion Potential (ODP). The most notable impact of CFCs is their ability to break down ozone molecules in the Earth's stratosphere, resulting in the thinning of the ozone layer. This discovery led to their phase-out under the Montreal Protocol in the late 20th century.

  • Environmental Impact: High ODP, high GWP.
  • Examples: R-12, R-11.
  • Current Status: Phased out due to severe environmental damage.

2.2 Hydrochlorofluorocarbons (HCFCs)

Hydrochlorofluorocarbons (HCFCs) were introduced as a transitional alternative to CFCs in the late 20th century. HCFCs, such as R-22, were designed to be less damaging to the ozone layer, with a lower ODP compared to CFCs. However, despite being a somewhat safer alternative, HCFCs still have significant ODP and Global Warming Potential (GWP), making them unsuitable for long-term use in a sustainable HVACR industry.

The Montreal Protocol also mandated the gradual phase-out of HCFCs, with the most widely used HCFC, R-22, seeing its production restricted in many countries. The search for less harmful refrigerants has led to the development of more environmentally friendly alternatives, making HCFCs less common in new systems, though they are still in use in older equipment.

  • Environmental Impact: Lower ODP than CFCs, but still significant; high GWP.
  • Examples: R-22, R-123.
  • Current Status: Phased out in most regions but still in use in legacy systems.

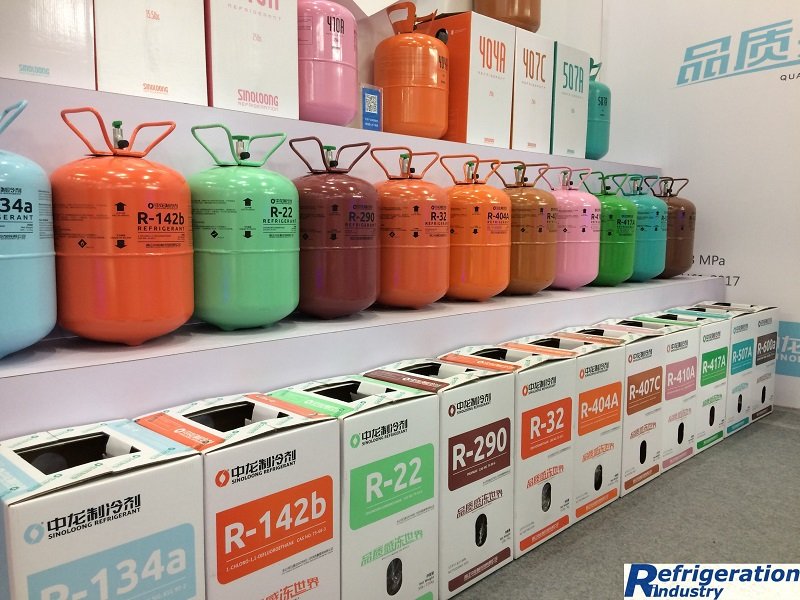

Refrigerants


2.3 Hydrofluorocarbons (HFCs)

Hydrofluorocarbons (HFCs) became a popular choice as replacements for CFCs and HCFCs due to their zero Ozone Depletion Potential (ODP). Unlike their predecessors, HFCs do not contain chlorine, which makes them safe for the ozone layer. Common HFCs, such as R-134a, R-410A, and R-404A, became widely used in refrigeration, air conditioning, and automotive applications.

However, despite their zero ODP, HFCs have a high Global Warming Potential (GWP), contributing to climate change. As awareness of global warming has increased, regulatory bodies have called for the reduction of HFC use, leading to the development of next-generation refrigerants with lower environmental impact.

  • Environmental Impact: Zero ODP, but high GWP.
  • Examples: R-134a, R-410A, R-404A.
  • Current Status: Subject to phase-down under the Kigali Amendment due to their high GWP. Being replaced by low-GWP alternatives.

2.4 Hydrofluoroolefins (HFOs)

Hydrofluoroolefins (HFOs) represent the latest advancement in refrigerant technology. These refrigerants are designed to address the environmental shortcomings of HFCs, particularly their high GWP. HFOs, such as R-1234yf and R-1234ze, offer a much lower GWP than traditional HFCs while maintaining the non-ozone-depleting benefits.

HFOs are being increasingly adopted in various sectors, including automotive air conditioning, commercial refrigeration, and even large-scale industrial applications. However, they come with some trade-offs, such as mild flammability, which has led to careful consideration in their application.

Environmental Considerations of HFOs

While HFOs are promoted as environmentally friendly due to their low GWP and zero ODP, emerging research has raised concerns about their potential environmental impact. One of the primary decomposition products of HFOs, specifically R-1234yf and R-1234ze, is trifluoroacetic acid (TFA). TFA is a persistent compound that is highly soluble in water and resistant to degradation in the environment.

As HFOs break down in the atmosphere, TFA can accumulate in water bodies such as rivers, lakes, and oceans. Although current TFA concentrations are considered low and not immediately harmful to aquatic ecosystems or human health, there is uncertainty regarding the long-term effects of increased TFA levels resulting from widespread HFO use.

Environmental agencies and scientists are monitoring TFA accumulation to assess potential ecological risks. The HVACR industry is also exploring mitigation strategies, including developing alternative refrigerants with minimal environmental side effects and improving the lifecycle management of HFOs to reduce emissions.

Current Status: Growing adoption in new systems as a preferred low-GWP alternative to HFCs, with ongoing research into their full environmental impact.


2.5 Natural Refrigerants

Natural refrigerants have experienced a resurgence in recent years due to their low environmental impact and excellent thermodynamic properties. Unlike synthetic refrigerants, natural refrigerants such as ammonia (R-717), carbon dioxide (CO₂, R-744), and hydrocarbons (e.g., propane, isobutane) are not harmful to the ozone layer and generally have low GWP.

Each natural refrigerant comes with its own advantages and challenges. For instance, ammonia offers excellent energy efficiency and low cost but is toxic, limiting its use to industrial applications. CO₂ is non-toxic and non-flammable but operates at high pressures, which can complicate system design. Hydrocarbons, such as propane and isobutane, are widely used in smaller applications due to their high efficiency and low GWP, but they are flammable, requiring special safety measures.

  • Environmental Impact: Zero ODP, low GWP.
  • Examples: Ammonia (R-717), CO₂ (R-744), Propane (R-290), Isobutane (R-600a).
  • Current Status: Increasing use, particularly in industrial and eco-friendly systems.

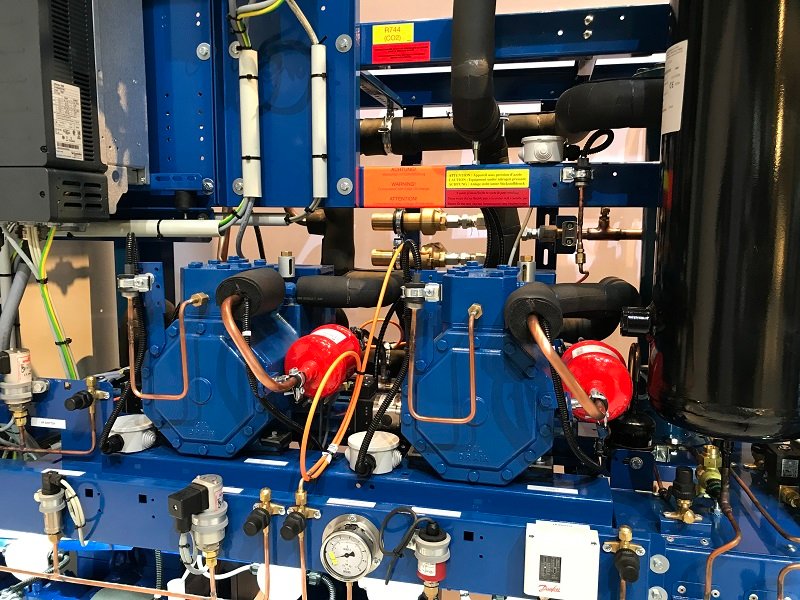

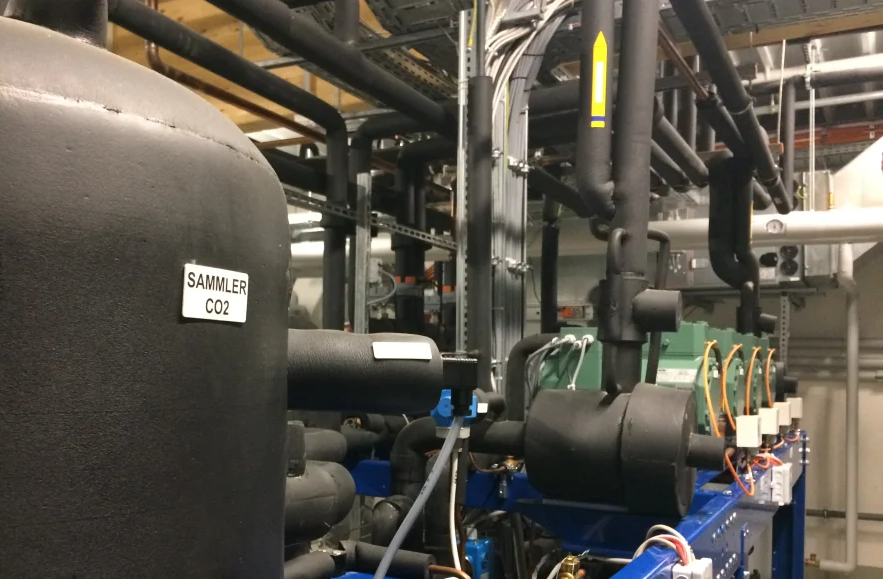

CO2 refrigeration


Summary of Refrigerant Types

Refrigerant

ODP

GWP

Advantages

Disadvantages

CFCs (e.g., R-12)

High

High

Stable, non-toxic

High ODP and GWP, phased out

HCFCs (e.g., R-22)

Medium

High

Lower ODP than CFCs

Still harmful, being phased out

HFCs (e.g., R-134a)

Zero

High

Zero ODP

High GWP, subject to phase-down

HFOs (e.g., R-1234yf)

Zero

Low

Very low GWP, eco-friendly

Mild flammability

Natural (e.g., CO₂)

Zero

Low

Low GWP, high efficiency

  • CO₂ (R-744): High operating pressures requiring robust system components.
  • Ammonia (R-717): Toxicity, requiring careful handling and safety measures.
  • Hydrocarbons (e.g., R-290, R-600a): Flammability, necessitating strict safety protocols.
  •

    3. Refrigerant Properties

    Understanding the key properties of refrigerants is essential for selecting the right one for HVACR applications. These properties affect system performance, energy efficiency, safety, and environmental impact. The following section explores the most important properties of refrigerants and their relevance to system design and operation.

    3.1 Thermodynamic Characteristics

    The thermodynamic properties of a refrigerant determine its efficiency and suitability for different applications. The following characteristics are crucial when evaluating refrigerants:

    • Boiling Point: The boiling point of a refrigerant is the temperature at which it changes from liquid to gas at a given pressure. This is a critical factor in determining how effectively the refrigerant can absorb and release heat. Refrigerants with lower boiling points are often more suitable for low-temperature applications, while those with higher boiling points may be better suited for air conditioning and high-temperature refrigeration.
    • Latent Heat of Vaporization: This refers to the amount of heat a refrigerant can absorb when changing from a liquid to a gas without changing its temperature. A higher latent heat of vaporization means that a refrigerant can absorb more heat, making it more efficient at cooling. For example, ammonia (R-717) has a high latent heat, which makes it highly efficient in industrial applications.
    • Specific Heat: The specific heat capacity of a refrigerant affects how much energy is required to raise its temperature. Refrigerants with a higher specific heat can store more thermal energy, which can influence system design and efficiency.
    • Pressure-Temperature Relationship: The pressure at which a refrigerant operates is a key design consideration. Refrigerants like CO₂ (R-744) operate at extremely high pressures, which necessitates specialized equipment to handle those conditions. On the other hand, low-pressure refrigerants like R-1234ze can be used in systems with less stringent pressure requirements.

    3.2 Safety Classifications (Toxicity and Flammability)

    Refrigerant safety is classified based on two primary factors: toxicity and flammability. These classifications are outlined by standards organizations such as ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers).

    • Toxicity: Refrigerants are classified as either Class A (lower toxicity) or Class B (higher toxicity). For example, ammonia (R-717) is highly toxic and classified as Class B, making it suitable only for industrial systems where proper containment and ventilation are assured. On the other hand, refrigerants like HFCs and HFOs are typically Class A and pose minimal toxicity risks under normal operating conditions.
    • Flammability: Flammability is categorized into three groups: 1 (non-flammable), 2L (low flammability), and 3 (high flammability). While many HFCs, such as R-134a, are non-flammable (Class 1), newer alternatives like HFOs and hydrocarbons often exhibit some degree of flammability. For instance, R-1234yf is classified as 2L, meaning it is mildly flammable, while hydrocarbons like propane (R-290) are highly flammable (Class 3). Flammability must be carefully considered when selecting refrigerants for certain applications, especially in residential or commercial systems where safety is a primary concern.

    3.3 Environmental Impact (ODP and GWP)

    Two key metrics used to assess the environmental impact of refrigerants are Ozone Depletion Potential (ODP) and Global Warming Potential (GWP).

    • Ozone Depletion Potential (ODP): This metric indicates the refrigerant's ability to deplete the ozone layer. CFCs, such as R-12, have a high ODP, meaning they cause significant damage to the ozone layer. HCFCs, like R-22, have a lower ODP but still contribute to ozone depletion. Modern refrigerants such as HFCs and HFOs have an ODP of zero, meaning they do not harm the ozone layer.
    • Global Warming Potential (GWP): GWP measures the impact of a refrigerant on global warming relative to carbon dioxide (CO₂, which has a GWP of 1). Refrigerants with high GWP, such as HFCs (e.g., R-404A with a GWP of over 3900), contribute significantly to climate change. On the other hand, newer refrigerants like HFOs (e.g., R-1234yf with a GWP below 1) and natural refrigerants like ammonia (GWP of 0) are much more environmentally friendly. The trend in the HVACR industry is toward the adoption of refrigerants with low GWP to meet stringent environmental regulations and reduce the sector's contribution to global warming.

    3.4 Energy Efficiency

    The energy efficiency of a refrigerant is crucial to minimizing operational costs and reducing the environmental footprint of HVACR systems. The efficiency of a refrigerant is influenced by its thermodynamic properties and its performance in real-world conditions.

    • Coefficient of Performance (COP): COP is a measure of the energy efficiency of a refrigeration system, calculated as the ratio of cooling or heating provided to the amount of energy consumed. Refrigerants with higher COP values are considered more efficient, as they provide more cooling or heating for the same amount of energy input. For example, refrigerants like ammonia and CO₂ have high COP values, making them highly efficient choices in industrial and commercial applications.
    • System Design and Energy Use: Refrigerant properties also influence the overall energy consumption of HVACR systems. Factors such as the refrigerant’s pressure-temperature characteristics and its ability to work efficiently at varying ambient temperatures can significantly impact energy use. Refrigerants that work well across a broad temperature range and require less energy for compression cycles will typically lead to lower operating costs.
    • Environmental Efficiency: When selecting refrigerants, there is often a trade-off between energy efficiency and environmental impact. Some refrigerants may offer superior energy efficiency but have a higher GWP, while others may be more environmentally friendly but less efficient. Striking a balance between these factors is essential for sustainable system design.

    3.5 Compatibility with System Components

    The chemical stability and compatibility of a refrigerant with system components such as compressors, heat exchangers, and lubricants are critical factors in ensuring the longevity and reliability of HVACR systems.

    • Material Compatibility: Some refrigerants, especially natural ones like ammonia, can be corrosive to certain materials such as copper or brass. Therefore, system components must be carefully selected to ensure compatibility with the chosen refrigerant. Synthetic refrigerants like HFCs and HFOs tend to have fewer issues with material compatibility but may still require specific lubricants or seals.
    • Lubricant Compatibility: Refrigerants interact with lubricants in the system, and this interaction can significantly affect the performance and longevity of compressors. For example, HFC refrigerants often require synthetic polyol ester (POE) oils, while natural refrigerants like hydrocarbons may be compatible with more traditional mineral oils. Using the wrong lubricant can lead to increased wear, reduced efficiency, and even system failure.

    Summary of Key Refrigerant Properties

    Property

    Impact

    Boiling Point

    Determines suitability for specific temperature ranges in cooling and heating.

    Latent Heat of Vaporization

    Affects the refrigerant's efficiency in transferring heat.

    Pressure-Temperature Relationship

    Influences system design, operational pressure, and safety.

    Safety Classifications

    Critical for system safety; toxic and flammable refrigerants require careful handling.

    ODP & GWP

    Environmental impact; zero ODP and low GWP refrigerants are preferred for sustainability.

    Energy Efficiency

    A key factor in reducing operational costs and energy consumption.

    Material and Lubricant Compatibility

    Ensures long-term system reliability and reduces maintenance costs.





    4. Refrigerant Regulations and Standards

    The use of refrigerants in the HVACR industry is heavily regulated due to their potential environmental and safety risks. Over the years, international and regional regulations have evolved to address the impact of refrigerants on both the ozone layer and climate change. Compliance with these regulations is critical for businesses operating in the HVACR industry, as it shapes the choice of refrigerants, system design, and lifecycle management. This section will explore the most significant global and regional regulations, the standards that govern refrigerant use, and the future trends in refrigerant regulation.

    4.1 Global Environmental Regulations

    4.1.1 The Montreal Protocol

    The Montreal Protocol, adopted in 1987, is one of the most influential international environmental agreements. It was designed to phase out substances that deplete the ozone layer, particularly chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs), which were commonly used as refrigerants. The protocol has undergone several amendments, including the 1990 London Amendment and the 1992 Copenhagen Amendment, which expanded the list of controlled substances and accelerated the phase-out schedules.

    The protocol's success lies in its nearly universal adoption, with all 197 United Nations member states agreeing to its provisions. It has resulted in a significant reduction in the production and consumption of ozone-depleting substances (ODS), leading to a gradual recovery of the ozone layer.

    • Impact on Refrigerants: CFCs, such as R-12, and HCFCs, such as R-22, were targeted for phase-out under the Montreal Protocol. The phase-out of HCFCs is ongoing, with complete elimination expected in most countries by 2030. As a result, the HVACR industry has shifted to alternatives like hydrofluorocarbons (HFCs) and more recently, natural refrigerants and hydrofluoroolefins (HFOs).

    4.1.2 The Kigali Amendment

    The Kigali Amendment to the Montreal Protocol, adopted in 2016, represents the latest step in regulating refrigerants. While the original protocol focused on substances that harm the ozone layer, the Kigali Amendment specifically targets hydrofluorocarbons (HFCs), which have zero ozone depletion potential (ODP) but a high global warming potential (GWP). The amendment calls for the gradual reduction of HFCs over time, with developed countries leading the phase-down and developing nations following a slower schedule.

    The goal of the Kigali Amendment is to reduce the global warming impact of refrigerants by promoting the transition to low-GWP alternatives, such as HFOs and natural refrigerants. It is estimated that the full implementation of the Kigali Amendment could prevent up to 0.5°C of global temperature rise by 2100.

    • Impact on Refrigerants: HFCs like R-134a, R-404A, and R-410A are being phased down, pushing the industry to adopt refrigerants with lower GWP values. This has led to the development and increased adoption of HFOs, such as R-1234yf, and natural refrigerants, such as CO₂ and ammonia.

    4.2 Regional Regulations

    4.2.1 European Union (EU) F-Gas Regulation

    The EU F-Gas Regulation, first introduced in 2006 and revised in 2014, is a key legislative framework in Europe aimed at reducing emissions from fluorinated greenhouse gases (F-gases), which include HFCs. The regulation mandates a significant reduction in the use of HFCs, with a goal of cutting their use by 79% by 2030 compared to 2015 levels. This is achieved through a combination of phase-downs, bans on certain high-GWP refrigerants in new equipment, and stricter leak detection and reporting requirements.

    The regulation also imposes bans on the servicing and maintenance of equipment using high-GWP HFCs, as well as quotas that limit the amount of HFCs that can be placed on the market.

    • Impact on Refrigerants: The F-Gas Regulation has accelerated the adoption of low-GWP refrigerants in Europe, with many companies transitioning to alternatives like HFOs, hydrocarbons, and CO₂. It has also encouraged the development of more energy-efficient systems to reduce the overall environmental impact.

    4.2.2 United States Environmental Protection Agency (EPA) SNAP Program

    The Significant New Alternatives Policy (SNAP) program, run by the U.S. Environmental Protection Agency (EPA), evaluates and regulates alternatives to ozone-depleting substances. SNAP was established under the Clean Air Act in response to the Montreal Protocol and is responsible for approving or disallowing the use of specific refrigerants in various applications, based on their environmental and safety impacts.

    In recent years, the EPA has focused on phasing down HFCs through a combination of regulations and incentive programs. Under the American Innovation and Manufacturing (AIM) Act of 2020, the U.S. has begun implementing an HFC phase-down schedule aligned with the Kigali Amendment. The SNAP program also promotes the use of low-GWP alternatives.

    • Impact on Refrigerants: The EPA’s regulations have led to a gradual shift away from HFCs in favor of lower-GWP alternatives. HFCs such as R-404A and R-134a are being replaced by refrigerants like R-1234yf in automotive air conditioning and CO₂ in commercial refrigeration.

    4.2.3 Other Regional Regulations

    Other countries and regions have also developed regulations to control the use of refrigerants:

    • Japan: Japan’s regulatory framework focuses on reducing the use of high-GWP refrigerants in both residential and commercial applications. The country has also incentivized the use of CO₂ and other natural refrigerants through government programs.
    • China: As the world’s largest producer of HFCs, China is gradually aligning its policies with the Kigali Amendment. The country has committed to reducing HFC production and consumption over the coming decades, while also promoting the development of environmentally friendly refrigerants.
    • Australia: Australia has established its own HFC phase-down schedule in line with the Kigali Amendment. The country also encourages the use of low-GWP refrigerants in new HVACR systems.

    4.3 Safety Standards

    Safety is a crucial consideration in the use of refrigerants, especially with the increasing use of mildly flammable (2L) and highly flammable (Class 3) refrigerants. International and regional standards ensure that systems are designed and operated safely, minimizing the risks associated with refrigerant leaks, flammability, and toxicity.

    4.3.1 ISO Standards

    The International Organization for Standardization (ISO) develops and maintains several key standards for refrigerant safety:

    • ISO 817: This standard classifies refrigerants based on their safety properties, specifically toxicity and flammability. It assigns refrigerants into categories (A1, A2, A2L, A3) based on their risk levels.
    • ISO 5149: This standard provides safety requirements for the design, construction, and operation of refrigeration systems. It covers aspects such as refrigerant leakage, pressure relief, and fire protection.

    4.3.2 ASHRAE Standards

    The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) has established several key standards that influence refrigerant use in the U.S. and internationally:

    • ASHRAE Standard 34: This standard classifies refrigerants based on their toxicity and flammability, similar to ISO 817. It is widely used in North America to guide the selection of safe refrigerants for specific applications.
    • ASHRAE Standard 15: This standard provides safety guidelines for the design, installation, and operation of HVACR systems. It sets limits on refrigerant charge sizes, addresses safety concerns related to flammable and toxic refrigerants, and provides requirements for ventilation, pressure relief, and leak detection.

    4.3.3 EN Standards (Europe)

    The European Standards (EN), maintained by the European Committee for Standardization (CEN), offer similar safety guidelines to ISO and ASHRAE standards. Key EN standards include:

    • EN 378: This standard addresses the safety and environmental requirements for refrigeration systems and heat pumps, including the use of refrigerants with different flammability and toxicity classifications.
    • EN 60335-2-40: This standard sets safety requirements for household and similar electrical appliances, including air conditioners and heat pumps that use flammable refrigerants.

    4.4 Future Trends in Regulatory Changes

    As climate change becomes an increasingly urgent global issue, refrigerant regulations are expected to become even more stringent in the coming decades. Some key trends include:

    • Tighter Restrictions on High-GWP Refrigerants: Many countries are expected to accelerate the phase-out of high-GWP refrigerants in favor of lower-impact alternatives. Future regulatory frameworks will likely impose stricter limits on the use of HFCs and mandate the adoption of HFOs and natural refrigerants.
    • Increased Adoption of Low-GWP Refrigerants: Governments and international bodies will continue to promote the use of refrigerants with very low or zero GWP, such as CO₂, ammonia, and hydrocarbons, as part of broader strategies to reduce greenhouse gas emissions.
    • Advances in Refrigerant Management: Regulations will increasingly focus on the entire lifecycle of refrigerants, from production to disposal, ensuring that refrigerants are managed in an environmentally responsible manner. This includes stricter requirements for leak detection, recovery, and recycling.



    Applications in Various Sectors


    5. Refrigerant Applications in Various Sectors

    Refrigerants are integral to a wide range of applications in various sectors, each with specific requirements for performance, safety, and environmental sustainability. Different refrigerants are suited for different applications based on factors such as operating temperature, system design, energy efficiency, and regulatory considerations. This section explores the primary sectors where refrigerants are used and the types of refrigerants most commonly applied in each.

    5.1 Commercial Refrigeration

    Commercial refrigeration includes systems used in supermarkets, grocery stores, food service operations, and other facilities requiring low- to medium-temperature refrigeration to preserve food and other perishable goods. These systems must operate efficiently and reliably while meeting environmental and regulatory standards.

    • Common Refrigerants:
      • HFCs (e.g., R-404A, R-134a): Historically, HFCs have been widely used in commercial refrigeration due to their efficiency and safety. However, the high GWP of HFCs has led to a shift away from these refrigerants.
      • CO₂ (R-744): Increasingly adopted in commercial refrigeration, CO₂ systems offer low environmental impact with a GWP of 1 and are highly efficient in colder climates. CO₂ systems are particularly favored in Europe, where stringent F-Gas regulations encourage low-GWP solutions.
      • HFOs (e.g., R-1234yf, R-1234ze): These refrigerants are gaining traction in commercial systems due to their low GWP and excellent energy performance. They are often used as drop-in replacements for high-GWP HFCs.
      • Hydrocarbons (e.g., R-290, R-600a): Hydrocarbons are increasingly used in smaller commercial refrigeration systems, such as standalone units and display cases. With low GWP and high efficiency, they are ideal for environmentally conscious operations, though their flammability requires strict safety measures.
    • Trends: The commercial refrigeration sector is transitioning toward natural refrigerants (CO₂, hydrocarbons) and HFOs, driven by regulations that limit high-GWP HFCs. CO₂ transcritical systems, in particular, are becoming popular for larger-scale operations.

    5.2 Industrial Refrigeration

    Industrial refrigeration systems are used in large-scale operations, such as food processing plants, cold storage facilities, chemical manufacturing, and large-scale warehouses. These systems often require powerful, efficient refrigerants capable of maintaining low temperatures over extended periods.

    • Common Refrigerants:

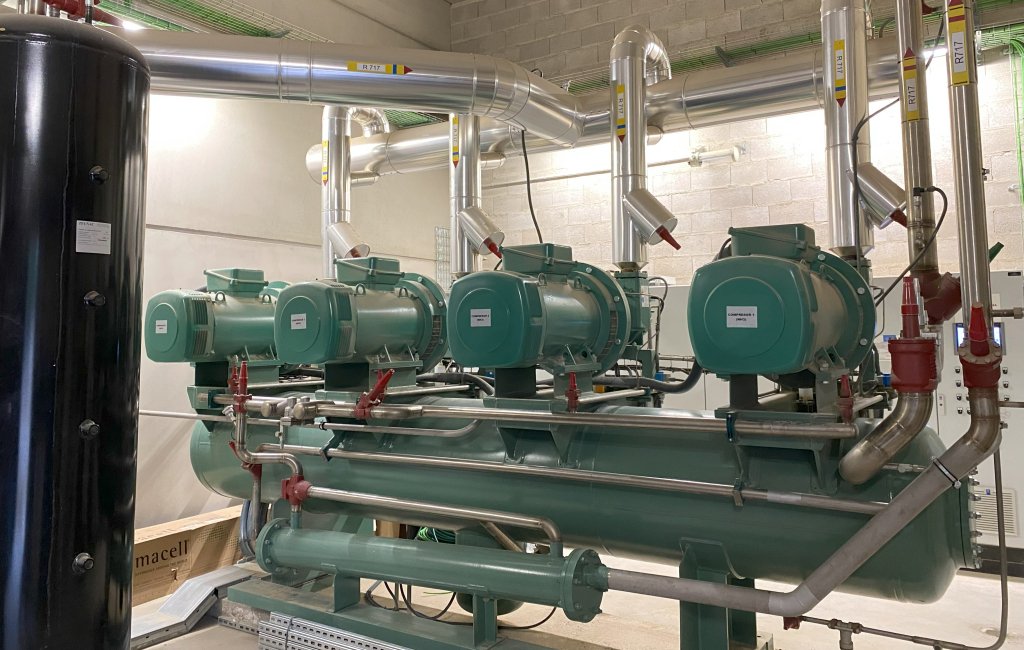

      • Ammonia (R-717): Ammonia is one of the most efficient and widely used refrigerants in industrial applications due to its excellent thermodynamic properties and low environmental impact (zero ODP, zero GWP). Its high toxicity, however, necessitates careful handling and containment.
      • CO₂ (R-744): CO₂ is also increasingly being used in industrial refrigeration systems, particularly in cascade or transcritical configurations, where it can achieve low temperatures while minimizing environmental impact.
      • HFCs (e.g., R-404A, R-507): While still in use in some industrial systems, HFCs are being phased out due to their high GWP, particularly in regions with strict environmental regulations.
    • Trends: Industrial refrigeration is shifting toward ammonia and CO₂ systems, both of which provide high energy efficiency and low environmental impact. Ammonia is favored in systems where safety protocols are robust, while CO₂ is becoming the refrigerant of choice in facilities where environmental concerns are paramount.

    5.3 Air Conditioning (Residential, Commercial, and Industrial)

    Air conditioning systems are used across a broad spectrum of applications, from residential homes to large commercial buildings and industrial facilities. These systems maintain comfortable indoor temperatures and humidity levels, requiring refrigerants that perform efficiently under varying load conditions.

    • Residential Air Conditioning:
      • HFCs (e.g., R-410A, R-134a): These refrigerants have been the standard in residential air conditioning due to their efficiency and safety. However, due to their high GWP, they are being gradually replaced in many markets.
      • HFOs (e.g., R-1234yf, R-1234ze): HFOs are emerging as low-GWP alternatives in residential air conditioning, offering comparable performance to HFCs with much lower environmental impact.
      • Hydrocarbons (e.g., R-290): In regions where safety concerns are adequately addressed, hydrocarbons are being adopted in residential systems due to their low GWP and efficiency.
    • Commercial Air Conditioning:
      • HFCs (e.g., R-410A): HFCs remain widely used in commercial air conditioning systems, but the phase-down of high-GWP refrigerants has led to a growing demand for alternatives.
      • CO₂ (R-744): In larger commercial and industrial systems, CO₂ is gaining popularity for air conditioning due to its low environmental impact.
      • HFOs (e.g., R-1234yf): HFOs are now being used in commercial HVAC systems as a drop-in replacement for HFCs, providing a balance between performance, safety, and environmental sustainability.
    • Industrial Air Conditioning:
      • Ammonia (R-717): Ammonia is occasionally used in large-scale industrial air conditioning, particularly in applications where efficiency and environmental performance are critical.
      • CO₂ (R-744): CO₂ is also being explored in large industrial air conditioning systems due to its low GWP and efficient heat transfer properties.
    • Trends: The air conditioning sector is moving toward low-GWP refrigerants such as HFOs and natural refrigerants, particularly in regions with aggressive climate policies. HFOs are increasingly favored for their ability to serve as drop-in replacements for HFCs in residential and commercial systems.

    5.4 Heat Pumps

    Heat pumps are systems that transfer heat from one location to another for heating and cooling purposes. They are becoming increasingly popular in both residential and commercial applications as energy-efficient alternatives to traditional heating and cooling methods.

    • Common Refrigerants:
      • HFCs (e.g., R-410A): HFCs have been the dominant refrigerants in heat pump systems due to their efficiency and reliability.
      • HFOs (e.g., R-1234yf, R-1234ze): HFOs are being adopted in new heat pump systems as low-GWP alternatives, offering similar performance with a reduced environmental footprint.
      • CO₂ (R-744): In some regions, particularly in colder climates, CO₂ is being used in heat pump systems due to its excellent performance at low temperatures and low GWP.
    • Trends: The growing demand for energy-efficient and environmentally friendly heating solutions is driving the adoption of low-GWP refrigerants in heat pumps. CO₂ is increasingly favored in commercial and industrial heat pumps, while HFOs are emerging as replacements for HFCs in residential systems.

    5.5 Automotive Air Conditioning

    Automotive air conditioning (AC) systems require refrigerants that can operate efficiently in confined spaces and under varying temperature conditions. Given the increasing focus on reducing vehicle emissions and environmental impact, the choice of refrigerants in this sector is critical.

    • Common Refrigerants:
      • HFCs (e.g., R-134a): R-134a was the standard refrigerant in automotive air conditioning for many years due to its performance and safety. However, due to its high GWP, it is being phased out in favor of more environmentally friendly alternatives.
      • HFOs (e.g., R-1234yf): R-1234yf is now the preferred refrigerant in automotive air conditioning, offering a much lower GWP than R-134a while maintaining similar performance. It is already mandated in new vehicles in several regions, including the European Union and the United States.
    • Trends: The automotive sector is transitioning from high-GWP refrigerants like R-134a to low-GWP options like R-1234yf, driven by regulatory requirements. The use of R-1234yf is now standard in most new vehicles, and the shift is expected to continue as more countries adopt stricter environmental regulations.

    5.6 Marine and Transport Refrigeration

    Marine and transport refrigeration systems are used to keep goods cool during shipping and transport, often in harsh environmental conditions. These systems must be reliable, durable, and capable of maintaining precise temperatures over long periods.

    • Common Refrigerants:
      • HFCs (e.g., R-404A): HFCs have been widely used in marine and transport refrigeration, but their high GWP has led to a gradual shift toward more sustainable alternatives.
      • CO₂ (R-744): CO₂ is being explored in marine refrigeration systems as a low-GWP alternative, offering excellent performance in harsh environments.
      • HFOs (e.g., R-1234yf): HFOs are also being introduced in transport refrigeration due to their low environmental impact.
    • Trends: The marine and transport sectors are moving toward low-GWP refrigerants like CO₂ and HFOs, driven by both regulatory pressures and the need for more environmentally sustainable transport solutions.


    Summary of Refrigerant Applications Across Sectors

    SectorCommon RefrigerantsTrends
    Commercial RefrigerationHFCs (R-404A, R-134a), CO₂ (R-744), HFOs (R-1234yf), Hydrocarbons (R-290, R-600a)Transition towards natural refrigerants like CO₂ and hydrocarbons, as well as HFOs, driven by regulations that limit high-GWP HFCs. CO₂ transcritical systems are becoming popular in larger operations.
    Industrial RefrigerationAmmonia (R-717), CO₂ (R-744), HFCs (R-404A, R-507)Industrial refrigeration is moving towards ammonia and CO₂ systems for high efficiency and low environmental impact. Ammonia remains a preferred option in facilities with robust safety protocols, while CO₂ is favored in environments where environmental concerns are prioritized.
    Residential Air ConditioningHFCs (R-410A, R-134a), HFOs (R-1234yf, R-1234ze), Hydrocarbons (R-290)Shift towards low-GWP refrigerants like HFOs and hydrocarbons, especially in regions with aggressive climate regulations.
    Commercial Air ConditioningHFCs (R-410A), CO₂ (R-744), HFOs (R-1234yf)HFOs and CO₂ are emerging as preferred alternatives to HFCs, with CO₂ gaining ground in larger commercial systems.
    Industrial Air ConditioningAmmonia (R-717), CO₂ (R-744)Growing use of ammonia and CO₂ in large industrial applications where efficiency and environmental performance are critical.
    Heat PumpsHFCs (R-410A), HFOs (R-1234yf, R-1234ze), CO₂ (R-744)Increasing use of low-GWP refrigerants such as CO₂ and HFOs, driven by the demand for energy-efficient and eco-friendly heating solutions.
    Automotive Air ConditioningHFCs (R-134a), HFOs (R-1234yf)Shift from R-134a to low-GWP alternatives like R-1234yf, driven by regulatory requirements. HFOs are now standard in new vehicles.
    Marine and Transport RefrigerationHFCs (R-404A), CO₂ (R-744), HFOs (R-1234yf)Transition to low-GWP refrigerants like CO₂ and HFOs, as sustainability in transport refrigeration becomes a priority.



    6. Refrigerant Selection Criteria

    Choosing the right refrigerant for any HVACR system is a critical decision that influences system performance, efficiency, environmental impact, and long-term operational costs. The process of refrigerant selection involves a careful balance of various factors, including environmental considerations, safety, system design, energy efficiency, and cost. This section outlines the key criteria to consider when selecting a refrigerant for specific applications.

    6.1 Environmental Considerations

    Environmental impact has become one of the primary factors in refrigerant selection due to increasing regulatory pressures and the global push to reduce greenhouse gas emissions. The two most important environmental metrics in refrigerant selection are Ozone Depletion Potential (ODP) and Global Warming Potential (GWP).

    • Ozone Depletion Potential (ODP): ODP measures a refrigerant's potential to deplete the ozone layer, which protects the Earth from harmful ultraviolet radiation. The use of refrigerants with high ODP, such as CFCs and HCFCs, has been phased out in most countries under the Montreal Protocol. Today, refrigerants with an ODP of zero, such as HFCs, HFOs, and natural refrigerants (e.g., CO₂ and ammonia), are the industry standard.
    • Global Warming Potential (GWP): GWP measures the impact a refrigerant has on global warming, relative to CO₂ (which has a GWP of 1). Refrigerants with high GWP contribute significantly to climate change. In many regions, regulations are pushing for the adoption of refrigerants with low or zero GWP, such as HFOs and natural refrigerants. For example, R-410A has a high GWP of around 2,000, while CO₂ and HFOs have significantly lower GWP values (e.g., R-744 has a GWP of 1, and R-1234yf has a GWP below 1).

    Summary of Environmental Considerations:

    • Preferred Refrigerants: Those with zero ODP and low GWP, such as HFOs, CO₂, ammonia, and hydrocarbons.
    • Regulatory Impact: Compliance with local and international environmental regulations, such as the Kigali Amendment to the Montreal Protocol, which mandates the phase-down of high-GWP refrigerants.

    6.2 System Design Compatibility

    Refrigerants must be compatible with the specific design and operational parameters of the HVACR system. The following factors related to system design must be taken into account:

    • Operating Temperatures and Pressures: Different refrigerants perform optimally at different temperature and pressure ranges. For instance, CO₂ operates at very high pressures, which requires specially designed components to handle these conditions. Ammonia is highly efficient at low temperatures, making it ideal for industrial refrigeration systems, while R-410A is commonly used in air conditioning due to its performance at medium pressures.
    • System Size and Complexity: Larger or more complex systems, such as those used in industrial refrigeration, may benefit from refrigerants like ammonia or CO₂, which are more efficient for large-scale operations. For smaller systems, such as domestic refrigerators, hydrocarbons like R-600a or low-GWP HFCs like R-134a are often more appropriate.
    • Material Compatibility: Refrigerants interact with system components such as compressors, seals, and piping. It is important to select a refrigerant that is compatible with the materials used in the system to avoid corrosion, leakage, or mechanical failure. For example, ammonia is incompatible with copper and brass, so systems using ammonia must use alternative materials like steel.
    • Refrigerant Charge: Systems should be designed to minimize refrigerant charge to reduce environmental impact in case of leaks. For instance, CO₂ and ammonia systems often require less refrigerant charge compared to HFC systems.

    Summary of System Design Compatibility:

    • Preferred Refrigerants: Depends on the application; for high-pressure systems, CO₂ is ideal, while ammonia excels in industrial settings, and HFOs or hydrocarbons are favored for small-scale or residential applications.
    • Key Considerations: Compatibility with operating conditions, system size, and material requirements.

    6.3 Energy Efficiency and Performance

    The energy efficiency of a refrigerant directly affects the operating costs of the system and its environmental footprint. Several factors influence the energy performance of a refrigerant:

    • Coefficient of Performance (COP): COP is a measure of a system’s energy efficiency, defined as the ratio of useful heating or cooling provided to the energy consumed. Higher COP values indicate more efficient refrigerants. Ammonia and CO₂ are known for their high energy efficiency, while HFCs and HFOs generally provide moderate efficiency.
    • Thermodynamic Properties: The thermodynamic characteristics of a refrigerant, such as latent heat of vaporization, boiling point, and pressure-temperature relationship, determine how efficiently it can transfer heat. Refrigerants with higher latent heat of vaporization, like ammonia, can absorb and release more heat, improving overall efficiency.
    • Operating Conditions: Refrigerant efficiency varies depending on the ambient conditions in which the system operates. For example, CO₂ systems are highly efficient in colder climates, while HFOs may perform better in warmer climates. The selection of refrigerants should consider the specific environmental conditions where the system will operate.

    Summary of Energy Efficiency and Performance:

    • Preferred Refrigerants: Ammonia, CO₂, and HFOs are favored for high efficiency in appropriate applications.
    • Key Considerations: COP, thermodynamic properties, and suitability for the specific operating environment.

    6.4 Safety Considerations

    Safety is a paramount concern in refrigerant selection, particularly when dealing with toxic, flammable, or high-pressure refrigerants. The safety of a refrigerant is determined by its toxicity and flammability, both of which are classified by industry standards such as ASHRAE Standard 34 and ISO 817.

    • Toxicity: Refrigerants are classified as either Class A (lower toxicity) or Class B (higher toxicity). Ammonia, for example, is a Class B refrigerant due to its toxicity, requiring stringent safety protocols in industrial applications. In contrast, HFOs and HFCs are generally Class A refrigerants, meaning they pose minimal health risks in case of leaks.
    • Flammability: Refrigerants are classified into three flammability categories:
      • Class 1: Non-flammable (e.g., R-134a, R-410A).
      • Class 2L: Low flammability (e.g., R-1234yf, R-1234ze).
      • Class 3: Highly flammable (e.g., propane, isobutane).

    Flammable refrigerants, such as hydrocarbons and some HFOs, require additional safety measures, including proper ventilation, leak detection systems, and restricted charge sizes.

    • Pressure: High-pressure refrigerants, such as CO₂, require specialized equipment and safety protocols to manage the risks associated with pressure containment. The use of pressure-relief devices and robust system designs is essential to ensure safe operation.

    Summary of Safety Considerations:

    • Preferred Refrigerants: Depends on the application; non-toxic and non-flammable refrigerants like HFOs are suitable for most applications, while ammonia and hydrocarbons are restricted to settings where safety protocols can be enforced.
    • Key Considerations: Toxicity, flammability, and pressure management.

    6.5 Cost and Availability

    The cost and availability of refrigerants can vary significantly based on the region, regulatory environment, and the refrigerant’s production scale. These factors must be considered to ensure the long-term sustainability of system operation.

    • Initial Cost: The upfront cost of refrigerants can influence their selection, particularly for large-scale projects. Natural refrigerants like ammonia and CO₂ are often more cost-effective in terms of operating expenses, but they may require higher initial capital investment due to the need for specialized equipment.
    • Operating Costs: Energy-efficient refrigerants, while sometimes more expensive initially, can lead to significant savings over the system's lifetime by reducing energy consumption. Lower GWP refrigerants may also help avoid environmental compliance penalties, further reducing long-term costs.
    • Availability: The phase-down of high-GWP refrigerants and the introduction of new alternatives, such as HFOs, can affect availability. Regions with strict regulations may experience limited access to certain refrigerants, while the production scale of natural refrigerants and HFOs continues to increase, improving their availability.

    Summary of Cost and Availability:

    • Preferred Refrigerants: Cost-effective and widely available options like CO₂ and ammonia for industrial systems, and HFOs or hydrocarbons for smaller applications.
    • Key Considerations: Initial cost, operating expenses, and availability in the region.

    Summary of Key Refrigerant Selection Criteria:

    Criteria

    Considerations

    Environmental Impact

    Zero ODP, low GWP refrigerants like HFOs, CO₂, ammonia, and hydrocarbons preferred.

    System Compatibility

    Refrigerant must match system design, operating conditions, and materials.

    Energy Efficiency

    High COP and favorable thermodynamic properties critical for reducing operating costs.

    Safety

    Non-toxic, non-flammable refrigerants are preferred; safety measures are essential for toxic/flammable refrigerants.

    Cost & Availability

    Balance initial cost with long-term savings; ensure availability in the operating region.





    7. Refrigerant Handling and Safety

    The safe handling of refrigerants is a critical aspect of the HVACR industry. Due to the varying toxicity, flammability, and pressure characteristics of different refrigerants, proper safety protocols are essential to protect technicians, the public, and the environment. This section outlines the key safety considerations for refrigerant handling, including storage, transportation, leak detection, recovery, and the training and certification required for those working with refrigerants.

    7.1 Safe Storage and Transportation

    Refrigerants, whether synthetic or natural, must be stored and transported according to strict safety guidelines to prevent leaks, exposure to harmful substances, and accidents.

    • Storage Conditions: Refrigerants should be stored in tightly sealed containers designed to handle the pressure of the refrigerant in both liquid and gaseous forms. The containers must be kept in a well-ventilated area, away from direct sunlight and heat sources, as excessive heat can increase pressure within the container, leading to ruptures or leaks.
    • Flammable Refrigerants: For flammable refrigerants such as hydrocarbons (e.g., R-290, R-600a) or HFOs (e.g., R-1234yf), additional precautions are necessary. These refrigerants should be stored in areas away from ignition sources and equipped with fire suppression systems. Special containers labeled as suitable for flammable substances must be used, and safety distances must be observed.
    • Transportation: When transporting refrigerants, vehicles must comply with local regulations for the transportation of hazardous materials. Containers must be secured to prevent movement and damage during transport. For high-pressure refrigerants like CO₂ (R-744), additional precautions should be taken to ensure that containers are not exposed to extreme temperatures or physical damage.

    Summary of Safe Storage and Transportation:

    • Use proper containers rated for the refrigerant type (flammable, toxic, or high-pressure).
    • Store refrigerants in well-ventilated areas, away from heat and ignition sources.
    • Follow transportation regulations for hazardous materials to ensure safety during transit.

    7.2 Leak Detection and Mitigation

    Leak detection and mitigation are critical for both safety and environmental protection, as refrigerant leaks can cause toxic exposure, fire hazards, and environmental damage, especially with high-GWP refrigerants.

    • Leak Detection Technologies:
      • Electronic Leak Detectors: These detectors are commonly used to identify refrigerant leaks by sensing the concentration of refrigerants in the air. They are highly sensitive and can detect small leaks in both high-pressure systems (e.g., CO₂) and systems using flammable refrigerants (e.g., hydrocarbons and HFOs).
      • Ultrasonic Leak Detectors: These devices detect the sound of gas escaping from a system, making them effective for detecting leaks in pressurized systems like those using CO₂ or ammonia.
      • Infrared Leak Detectors: Infrared technology can be used to detect the specific wavelengths of refrigerants, making it highly effective for HFC and HFO systems. This method is also valuable for continuous monitoring in large systems.
    • Regular Inspections: HVACR systems should be inspected regularly for potential leaks, especially in systems using toxic, flammable, or high-GWP refrigerants. This is particularly important in industrial systems that use large refrigerant charges.
    • Mitigation Measures: When a leak is detected, immediate steps must be taken to contain the refrigerant and repair the system. In systems using flammable refrigerants, electrical equipment should be powered off to eliminate ignition risks, and the area should be ventilated to disperse accumulated gases. In ammonia-based systems, protective gear such as respirators should be used, and the area should be evacuated if necessary.

    Summary of Leak Detection and Mitigation:

    • Use electronic, ultrasonic, or infrared leak detection systems to identify leaks early.
    • Perform regular inspections to ensure the integrity of refrigerant systems.
    • Immediately mitigate leaks by repairing systems and containing refrigerant releases.

    7.3 Recovery, Recycling, and Disposal of Refrigerants

    Proper recovery, recycling, and disposal of refrigerants are essential for minimizing environmental damage and complying with regulations.

    • Recovery: Refrigerant recovery involves extracting refrigerants from HVACR systems during maintenance, repair, or decommissioning without releasing them into the atmosphere. Specialized recovery equipment is used to safely capture refrigerants for reuse or disposal. Regulations such as the EPA’s Section 608 in the U.S. mandate the recovery of refrigerants to reduce environmental emissions.
    • Recycling: Once recovered, refrigerants can be filtered and cleaned for reuse in other systems. This reduces the need for new refrigerants and minimizes the environmental impact of production. However, refrigerants must be properly tested to ensure they meet quality standards before being reused.
    • Disposal: If refrigerants cannot be recycled, they must be disposed of according to local and international environmental regulations. Refrigerants are typically destroyed through incineration in specialized facilities designed to break down the chemical compounds without releasing harmful by-products. Careful documentation is required to ensure compliance with regulations and to track the disposal process.

    Summary of Recovery, Recycling, and Disposal:

    • Use certified recovery equipment to capture refrigerants during system maintenance or decommissioning.
    • Recycle refrigerants when possible to reduce environmental impact.
    • Dispose of unusable refrigerants through certified facilities to comply with environmental laws.

    7.4 Training and Certification for Technicians

    Due to the potential hazards associated with refrigerants, technicians must be properly trained and certified to handle them safely. Training programs and certifications ensure that personnel are equipped with the knowledge and skills needed to handle refrigerants in compliance with safety and environmental regulations.

    • Certification Requirements: Many countries have mandatory certification programs for technicians working with refrigerants. For example, in the United States, technicians must be certified under the EPA’s Section 608 program, which includes different levels of certification based on the type of equipment being serviced (small appliances, high-pressure systems, low-pressure systems, etc.).
    • Training Programs: Training programs typically cover topics such as:
      • Refrigerant properties (toxicity, flammability, pressure characteristics).
      • Safe handling and storage of refrigerants.
      • Leak detection and repair techniques.
      • Recovery, recycling, and disposal procedures.
      • Compliance with environmental and safety regulations.

    Specialized training is often required for working with certain refrigerants, such as ammonia or hydrocarbons, due to their unique risks.

    • Ongoing Education: As refrigerant technologies evolve and new low-GWP refrigerants are introduced, technicians must stay current with best practices. Ongoing education and recertification ensure that technicians are up-to-date with the latest safety protocols and regulations.

    Summary of Training and Certification:

    • Technicians must be certified to handle refrigerants safely and in compliance with local regulations.
    • Comprehensive training programs should cover refrigerant properties, safe handling, leak detection, and recovery procedures.
    • Ongoing education is critical as new refrigerants and technologies emerge.

    7.5 Emergency Response Protocols

    In the event of a refrigerant leak or accident, having emergency response protocols in place is essential to ensure the safety of personnel and the public.

    • Evacuation Procedures: For systems using toxic or flammable refrigerants, such as ammonia or hydrocarbons, evacuation procedures should be established in case of a significant leak. Personnel must be trained to follow these procedures, which include evacuating the area, ventilating the space, and alerting emergency services.
    • Protective Equipment: Appropriate personal protective equipment (PPE) must be available for technicians responding to refrigerant leaks. This includes respirators, fire-resistant clothing, gloves, and eye protection, especially when handling ammonia or flammable refrigerants.
    • Emergency Ventilation: For refrigerants that can pose inhalation risks (e.g., ammonia, HFCs in confined spaces), emergency ventilation systems must be in place to quickly disperse gases and reduce exposure levels.

    Summary of Emergency Response Protocols:

    • Establish clear evacuation procedures for refrigerant leaks.
    • Ensure that technicians have access to appropriate PPE.
    • Use emergency ventilation systems to manage leaks of toxic or flammable refrigerants.


    The safe handling of refrigerants is a complex but critical aspect of the HVACR industry. Ensuring the proper storage, transportation, leak detection, recovery, and disposal of refrigerants is essential to protect the environment and ensure compliance with regulations. Technicians must be trained and certified to manage the specific risks associated with different refrigerants, particularly as the industry transitions to new low-GWP alternatives. By following strict safety protocols and staying up-to-date with emerging technologies, the HVACR industry can continue to evolve while maintaining the highest standards of safety.



    8. Future of Refrigerants

    As the HVACR industry continues to evolve, the future of refrigerants will be shaped by advancements in technology, increasing environmental regulations, and the global push to reduce greenhouse gas emissions. The focus is shifting toward refrigerants that minimize environmental impact while maintaining or improving system performance, safety, and efficiency. This section explores the emerging trends, innovations, and challenges that will define the future of refrigerants in various sectors.

    8.1 Transition to Low-GWP and Natural Refrigerants

    The global phase-down of high-GWP refrigerants, driven by the Kigali Amendment to the Montreal Protocol and regional regulations such as the EU F-Gas Regulation, has set the stage for a transition to refrigerants with much lower environmental impact. As a result, the use of low-GWP refrigerants, particularly hydrofluoroolefins (HFOs) and natural refrigerants, is expected to increase significantly in the coming years.

    • HFOs: HFOs, such as R-1234yf and R-1234ze, offer a much lower GWP compared to traditional HFCs, making them a leading alternative in applications ranging from automotive air conditioning to commercial refrigeration. HFOs are expected to see widespread adoption in regions with stringent climate regulations, particularly as replacements for high-GWP refrigerants like R-134a and R-410A. However, mild flammability remains a challenge, requiring additional safety measures in some applications.
    • Natural Refrigerants: Natural refrigerants, including ammonia (R-717), carbon dioxide (CO₂, R-744), and hydrocarbons (e.g., propane (R-290) and isobutane (R-600a)), are experiencing a resurgence due to their low GWP and, in most cases, zero Ozone Depletion Potential (ODP). CO₂, in particular, is gaining momentum in commercial and industrial refrigeration applications, while hydrocarbons are increasingly used in smaller systems such as domestic refrigerators and air conditioning units. Ammonia remains a dominant choice in large-scale industrial systems where its efficiency and cost-effectiveness outweigh the safety concerns associated with its toxicity.
    • Challenges and Opportunities: While low-GWP and natural refrigerants offer significant environmental benefits, their widespread adoption comes with challenges. For instance, hydrocarbons and HFOs often require updated safety protocols due to their flammability, while CO₂ systems must be designed to handle high operating pressures. Ammonia, despite its efficiency, is limited by toxicity concerns that restrict its use to specific sectors. However, advancements in system design and safety technologies are making these refrigerants more viable across a broader range of applications.

    8.2 Development of New Refrigerants

    As regulatory pressures increase, research and development efforts are focused on creating new refrigerants that not only meet environmental standards but also offer improved performance and safety.

    • Next-Generation Synthetic Refrigerants: Researchers are developing new blends of synthetic refrigerants with lower GWP than traditional HFCs but with performance characteristics that match or exceed current refrigerants. For example, R-466A, a non-flammable, low-GWP alternative to R-410A, is being explored as a potential refrigerant for air conditioning systems that require non-flammable solutions.
    • Advanced Blends: Blended refrigerants that combine the benefits of multiple refrigerants are also being explored as a way to balance environmental impact with performance. These blends may include a mix of HFOs and HFCs to reduce GWP while maintaining desirable thermodynamic properties.
    • Refrigerants for Extreme Conditions: As demand for refrigeration and air conditioning grows in regions with extreme climates, such as the Middle East and polar regions, there is a need for refrigerants that can maintain efficiency and reliability in harsh environmental conditions. Research is being conducted into refrigerants that can operate at very low or high temperatures while still adhering to environmental regulations.

    8.3 Technological Innovations in Refrigeration Systems

    In addition to the development of new refrigerants, technological innovations in refrigeration system design are helping to optimize refrigerant performance and reduce environmental impact. While some of these technologies hold significant promise, they are currently in the research and development stages and are not yet widely available commercially.

    Magnetic Refrigeration

    Magnetic refrigeration is an emerging technology that uses magnetic fields to transfer heat, potentially eliminating the need for traditional refrigerants altogether. This technology leverages the magnetocaloric effect, where certain materials heat up or cool down when exposed to a changing magnetic field. Magnetic refrigeration has the potential to offer high energy efficiency and serve as an environmentally friendly alternative to conventional vapor-compression systems.

    However, as of 2023, magnetic refrigeration remains largely in the research and development phase, with limited commercial applications. Challenges such as the high cost of suitable magnetic materials, system complexity, and scalability need to be addressed before this technology can become mainstream. Ongoing research focuses on improving the performance, reducing costs, and overcoming technical hurdles to make magnetic refrigeration a viable option for the HVACR industry.

    Electrochemical Cooling

    Electrochemical cooling is another innovative technology under exploration. It involves using the flow of ions between electrodes to produce a cooling effect, eliminating the need for traditional refrigerants. This method has the potential to significantly reduce the environmental footprint of cooling systems and revolutionize refrigeration technology.

    As with magnetic refrigeration, electrochemical cooling is still in the early stages of development. As of 2023, it is primarily confined to laboratory research and prototype demonstrations. Significant advancements are required to address issues related to efficiency, durability, and cost-effectiveness before electrochemical cooling can be considered for commercial applications. Researchers are working to enhance the materials and designs used in these systems to overcome current limitations.

    Advanced Heat Pump Technologies

    Heat pump technology continues to evolve, with improvements in system design allowing for more efficient operation using low-GWP refrigerants like CO₂ and HFOs. For example, transcritical CO₂ heat pumps are becoming more common in specific applications, particularly in colder climates where they can deliver high energy efficiency while utilizing a refrigerant with a GWP of 1.

    While advanced heat pump systems are more mature compared to magnetic refrigeration and electrochemical cooling, they still face challenges related to system complexity, higher initial costs, and the need for specialized components to handle high pressures (in the case of CO₂). Nevertheless, they represent a significant advancement in reducing the environmental impact of heating and cooling systems and are gradually being adopted in commercial and industrial sectors.

    Emphasis on Research and Development

    While these technological innovations offer exciting possibilities for the future of refrigeration, it is important to emphasize that they are not yet widely available commercially. Further research and development are necessary to overcome technical challenges, improve efficiency, and reduce costs. The HVACR industry, academia, and governments are investing in research programs to accelerate the maturation of these technologies.

    As these innovations progress from the laboratory to real-world applications, they may provide viable alternatives to conventional refrigeration methods, contributing to a more sustainable and environmentally friendly industry. Stakeholders should stay informed about these developments while continuing to focus on currently available low-GWP refrigerants and system optimizations to meet immediate environmental goals.

    8.4 Focus on Refrigerant Lifecycle Management

    The future of refrigerants will also place greater emphasis on managing refrigerants throughout their lifecycle, from production to disposal. Ensuring that refrigerants are properly contained, recovered, recycled, and disposed of is critical to minimizing their environmental impact.

    • Refrigerant Recovery and Recycling: As the phase-out of high-GWP refrigerants continues, there is growing demand for systems that can efficiently recover and recycle refrigerants at the end of their useful life. This reduces the need for new refrigerant production and minimizes the risk of harmful emissions during the disposal process. Technologies for automated leak detection and efficient refrigerant recovery are becoming more widespread, helping to improve lifecycle management.
    • Circular Economy: In the future, a circular economy approach to refrigerants may emerge, where refrigerants are continuously recycled and reused within closed-loop systems. This could significantly reduce the environmental impact of refrigerant production and disposal.

    8.5 Regulatory and Market Forces Driving Innovation

    The continued tightening of environmental regulations and the growing demand for eco-friendly products are pushing manufacturers to innovate in both refrigerant development and system design.

    • Stricter Regulations: As governments worldwide continue to implement stricter regulations on high-GWP refrigerants, the HVACR industry is being forced to adapt rapidly. The European Union’s F-Gas Regulation, the U.S. AIM Act, and similar regulations in other regions are accelerating the phase-down of HFCs and pushing the adoption of alternatives.
    • Consumer and Market Demand: In addition to regulatory pressures, there is growing market demand for environmentally friendly products. Consumers and businesses are increasingly choosing systems that use low-GWP refrigerants, driving manufacturers to invest in more sustainable technologies. This trend is likely to continue, with low-GWP refrigerants becoming the industry standard.

    8.6 Challenges Ahead

    While the future of refrigerants holds great promise, several challenges remain:

    • Cost and Availability: The transition to new refrigerants and technologies can be expensive, particularly for smaller businesses. Some low-GWP refrigerants, like HFOs, are still relatively costly compared to traditional HFCs, though prices are expected to decrease as production scales up. Ensuring global availability of new refrigerants, particularly in developing markets, will also be a challenge.
    • Safety and Training: The adoption of mildly flammable (2L) or highly flammable refrigerants requires rigorous safety protocols and training for technicians. Ensuring that industry professionals are adequately trained to handle these refrigerants will be critical to their successful adoption.
    • Technological Maturity: Some of the most promising technologies, such as magnetic and electrochemical refrigeration, are still in the experimental or early commercialization stages. It may take years before they are widely available, and more research is needed to address scalability and cost-effectiveness.


    The future of refrigerants is characterized by a shift toward environmentally sustainable solutions, driven by both regulatory pressures and technological advancements. The adoption of low-GWP refrigerants, the development of new refrigerant technologies, and innovations in system design will play pivotal roles in shaping the future of the HVACR industry. While challenges remain, the ongoing evolution of refrigerants presents significant opportunities to improve energy efficiency, reduce environmental impact, and meet the demands of a changing global market.




    9. Conclusion

    The HVACR industry is undergoing a significant transformation as it moves away from high-GWP refrigerants toward more environmentally sustainable alternatives. Regulatory frameworks such as the Montreal Protocol and its Kigali Amendment, alongside regional laws like the EU F-Gas Regulation and the U.S. AIM Act, are driving this transition. These regulations push the adoption of refrigerants with zero ODP and low GWP, such as HFOs, ammonia, CO₂, and hydrocarbons.

    The future of refrigerants lies in innovations that balance environmental impact, safety, and performance. New refrigerants, such as low-GWP synthetic blends and natural refrigerants, along with technological advancements in system design, offer promising solutions. At the same time, challenges such as safety concerns with flammable refrigerants, training requirements, and the initial costs of adopting new technologies will need to be addressed.

    The industry is also embracing technologies like magnetic refrigeration and electrochemical cooling, which aim to eliminate the use of conventional refrigerants altogether, potentially revolutionizing the way we approach cooling and refrigeration. Furthermore, managing refrigerants throughout their lifecycle, including recovery, recycling, and disposal, is becoming an essential focus area.

    In conclusion, the refrigeration industry is at a pivotal moment, driven by both regulatory pressures and market demand for more sustainable solutions. While challenges remain, the transition toward low-GWP refrigerants and cutting-edge cooling technologies offers significant opportunities for innovation, efficiency gains, and environmental stewardship. Manufacturers, engineers, and policymakers must collaborate to accelerate the adoption of greener, safer refrigerants while ensuring that the industry's growth aligns with global environmental goals.


    generated: 0.0297
