The new Circlemiser series by Geoclima

From the ultra-efficient technology of Turbomiser comes Circlemiser, the new and most efficient series of air cooled chillers present on the market.

The new Circlemiser series is characterized by incomparable performance and high efficiency levels, with an increase in EER up to + 15%, improving the already very high efficiency of Turbomiser technology.

The technological innovation of Circlemiser is in the design and development of special cylindrical condensers, and the installation of cascade flooded evaporators.

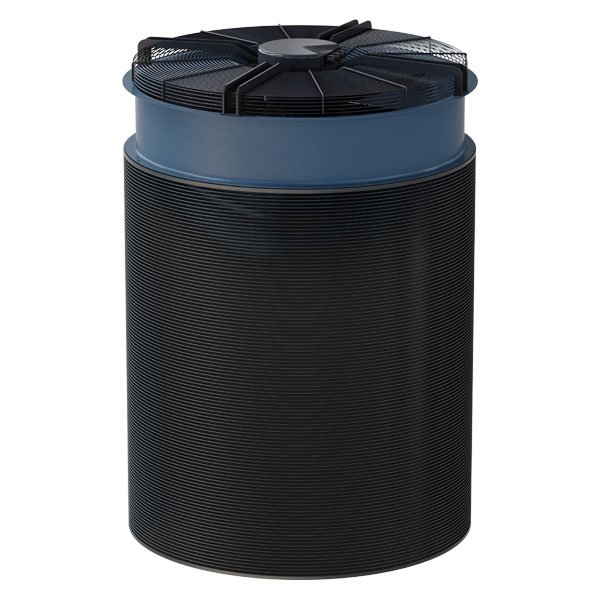

CYLINDRICAL CONDENSERS
The new Circlemiser series by Geoclima is characterized using microchannel condensers with the heat exchange surface increased by 45% compared to traditional condensers, thanks to the special cylindrical configuration of the heat exchanger.

The Geoclima Research Development Department designed this special and unique cylindrical layout. This unique design makes it possible to increase the heat exchanger capacity reducing condensing temperature as well as approach temperature.

Using the new Geoclima condenser coil and evaporator design we have been able to achieve performance improvement without changing the footprint of our air-cooled chiller range.

CASCADE FLOODED EVAPORATOR

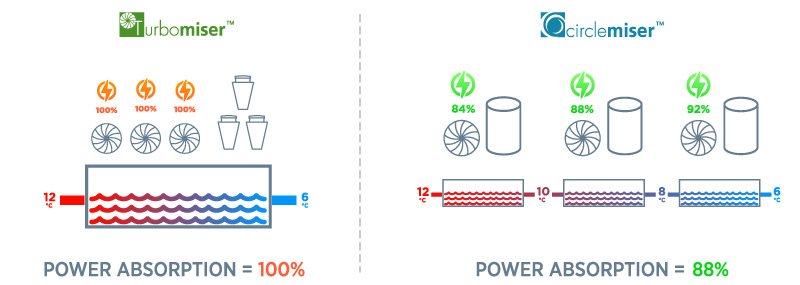

Circlemiser chillers are equipped with cascade flooded evaporators, which lead to the reduction of the ΔT between evaporation temperature and outlet temperature of the fluid.

The cascade arrangement of the evaporators increases the evaporation temperature and, at the same time, reduces energy consumption. Using this type of evaporator Geoclima has been able to further increase efficiency across the range of the Turbomiser air cooled chillers.

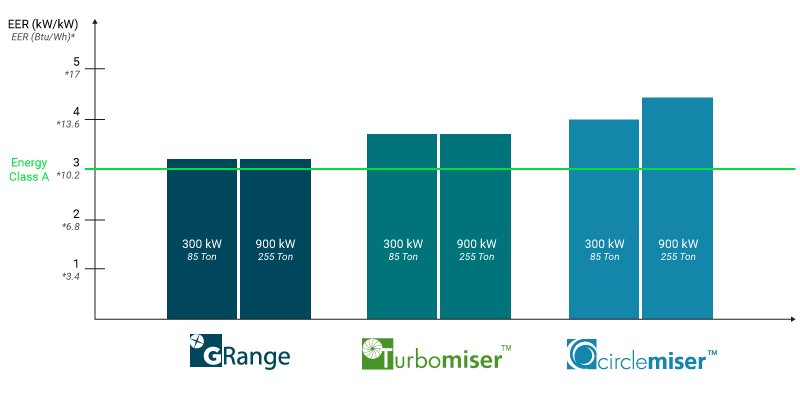

+15% OF COOLING EFFICIENCY
Comparing the Circlemiser with traditional air cooled Turbomiser chillers, at the same AHRI/EUROVENT conditions and same size (with the same number of compressors, same model of compressors, same capacity), Circlemiser records an increase in EER up to +9.5% (with one compressor units) and up to +15% (with multi-compressor units), with the highest achievable value of EER 4.35 (kW/kW) and 14.84 (Btu/Wh).

From the comparison of Circlemiser with Turbomiser with Evaporative System, with a relative humidity of 50%, the efficiency ensured by Circlemiser is equivalent to the efficiency achievable with the Evaporative System, without costs and installation and maintenance conditions that come from the use of water for the evaporative system. Circlemiser represents therefore a valid alternative to the adiabatic units in those cases in which adiabatic configuration is not applicable.

The new Circlemiser series is available for air cooled Turbomiser units, both with R134a, and with HFO-1234ze refrigerants.
Related tags: chiller, evaporator, R134a, chillers, HFO
