The new SPHERA EVO system from Clivet

Date: 24 October 2019
The new SPHERA EVO system from Clivet

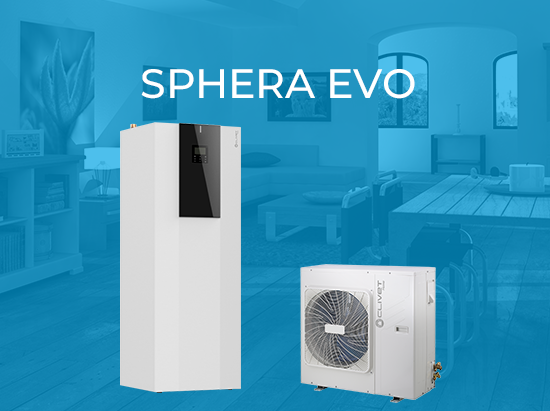

With inbuilt full inverter technology, guaranteeing individual and environment well-being reducing consumption and using renewable energies, stands the SPHERA EVO (MDAN-YMI+SRHME), the specialized packaged heat pump is able to meet the thermal and comfort requirements of single or multi-family houses with medium-low energy consumption.

SPHERA EVO is presented in a new design and, thanks to an aesthetic appearance, it can be easily integrated into any living context. In fact, SPHERA EVO is the first testimonial of ALTO Design, the new product identity that recalls the concepts of freshness and purity, intrinsic in the Clivet brand.

SPHERA EVO is available in four sizes from 4 kW to 10 kW
Thanks to a dedicated App available for a smartphone, it is possible to manage the main functions of the heat pump, such as the scheduling of the system and the domestic hot water.

New R32 refrigerant: more attention to the environment

The new SPHERA EVO system is the sustainable solution for air-conditioning and domestic hot water production, thanks to the introduction of environmentally friendly refrigerant R32, with a GWP (Global Warming Potential) of -70% compared to R-410A refrigerant. Clivet is among the first companies on the market to adopt this solution, confirming itself at the forefront in the use of new technologies and attentive to environmental issues.

Top performance, in class A

Improved performance guarantees A+++ class in heating at low temperature (35°C water supply) and seasonal efficiency for the production of hot sanitary hot water at the top of the class A + category with profile L.

New features for all residential applications

SPHERA EVO allows heating, cooling and from today also the production of domestic hot water up to 55°C, with a wide operating limit (from -25°C to +43°C outdoor air temperature). To satisfy all applications and installation possibilities, it also offers new features such as the double set-point, the possibility of setting the climatic curves in both heating and cooling and the silent function for night-time operation.

Great application versatility, for every type of system

- high efficiency circulation pump with variable flow rate
- integrated 3-way valve for domestic hot water management
- 190-litre or 250-litre sanitary storage tank
- 40 litre inertial storage tank (optional)
- management kit for two hydraulic circuits with different temperatures (optional)
- solar thermal connection kit for the production of domestic hot water (optional)
- SG Ready - prepared for connection to the Smart Grid
Find out more on our website about: R32, heat pump
